Bearings are frequently called the “joints of industry.” Getting the option right directly impacts your tools’s reliability, service life, and maintenance prices. Lots of bearing failures do not come from low quality– they come from wrong choices. Things like tons computation mistakes, overlooking rate limits, or picking the incorrect lubrication method. These little mistakes can create devices to break down early in its service life. This overview strolls you with the entire selection procedure, giving designers and procurement specialists a clear path from analyzing working conditions to verifying the ideal bearing version.
Part One: What You Need to Know Prior To Beginning
Prior to you open any kind of bearing brochure, ask yourself one question: What exactly does this device require the birthing to do? The answer depends on 5 key areas:
1. Tons Qualities
Tons is the top consider birthing selection. You require to identify three points:
Instructions: Is it radial load (perpendicular to the shaft), axial lots (alongside the shaft), or a mix of both?
Size: Is it light, modest, or heavy? Any type of impact tons?
Nature: Is the load constant or changing? How typically do effect lots take place and just how solid are they?
Take a belt conveyor for instance. The bearings at the drive end tackle radial loads from belt stress, the weight of the belt and rollers, plus the shaft assembly. When determining, you need to consider different operating problems– start-up, typical running, stopping– and use the worst-case situation for your style.
2. Rate Conditions
(bearings for steel mill)
Rate is an additional vital aspect affecting birthing life. According to exhaustion life theory, bearing life has an inverted relationship with speed. For variable rate conditions, you need to compute the comparable speed. Take a rotary kiln support roller– its speed could vary from 0.5 to 2.5 r/min. You ‘d require to weight the running time at each speed to obtain an equal worth.
One thing to watch out for: recognizing only the optimum rate can ruin your lubrication strategy. The lube you pick based upon top speed might not form a proper oil movie at lower speeds. Also, if your machine has long idle durations, you ought to point out that– or else nearby devices vibrations can cause false brinelling damages.
3. Required Service Life
Birthing service life is normally expressed as L10h (the number of hours that 90% of a bearing team will certainly get to before fatigue spalling shows up). A common mistake is going for an overly lengthy life– as soon as L10h goes beyond 100,000 hours, the bearing size obtains too huge. It becomes more challenging to oil, torque rises, and it ends up being much more sensitive to minimum tons. In the end, it could stop working for factors other than exhaustion.
4. Space Restrictions
You need to know your available room limitations from the beginning– shaft size array, real estate birthed size, axial size restrictions. Once you know the matching shaft size and offered room, you can quickly limit your alternatives.
5. Running Accuracy Demands
Most applications do just great with standard precision bearings. However, for high-speed or high-precision tools like machine device spindles, you’ll require P5, P4, or perhaps greater grades. Simply remember that opting for greater accuracy without an actual requirement will increase prices dramatically. Match the grade to your actual requirements.
Part Two: Matching Birthing Kinds to Functioning Issues
Once you have those specifications clear, the next step is to match the right bearing kind based on lots direction, size, rate, and misalignment resistance.
1. Lots Instructions: Radial, Axial, or Combined?

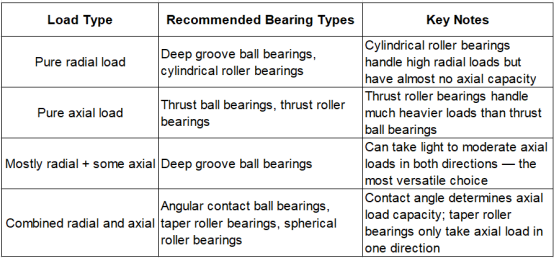

This is the most basic filter. It can direct you to a few prospects today:
When the axial-to-radial lots proportion (Fa/Fr) modifications, your option reasoning adjustments also. At reduced proportions, select deep groove sphere bearings. At modest proportions, utilize small-contact-angle angular contact bearings or taper roller bearings. At high ratios, you’ll require large-contact-angle bearings, or take into consideration combining a drive bearing with a radial bearing.
( Radial)
2. Tons Dimension: Ball Bearings or Roller Bearings?
This is a classic selection:
Light or modest loads: Choose ball bearings (deep groove or angular contact). The point contact between spheres and raceways provides lower rubbing, making them appropriate for medium to broadband.
Hefty or effect lots: You must use roller bearings (cylindrical, round, or taper). Line contact between rollers and raceways offers much greater lots capacity and much better effect resistance.
3. Rate: Round Bearings for High Speed, Roller Bearings for Low
Usually speaking, sphere bearings have higher rate limitations than roller bearings. For high-speed applications (over 1000 r/min), put ball bearings at the top of your checklist. When you require the highest feasible speed with pure radial tons, open deep groove ball bearings are your best option. For integrated tons at high speed, angular contact ball bearings are the method to go.
Round roller bearings, taper roller bearings, and needle bearings have fairly reduced speed restrictions. They’re primarily matched for low-to-medium speed, heavy-load conditions.
4. Misalignment Resistance: Do You Need Self-Aligning?
This set typically gets overlooked but it’s extremely crucial. You should take into consideration self-aligning bearings when:
Birthing housing bores don’t align well
The shaft isn’t tight adequate and bends throughout procedure
The bearing period is long and thermal growth triggers angular misalignment
You’re utilizing different split housings (like cushion block bearings)
Round roller bearings and round ball bearings have scooped outer ring raceways. This enables a specific quantity of angular misalignment in between the inner and outer rings without dangerous side stress and anxiety. They can compensate for both vibrant deflection and static setup mistakes.
On the various other hand, round roller bearings, taper roller bearings, and needle bearings have extremely minimal self-aligning capability. Also a little angular misalignment can trigger anxiety focus at the roller ends, causing high edge pressures that dramatically reduce bearing life. Deep groove ball bearings do have some self-aligning capacity, however the permitted angle is small– exceeding it will certainly lower life too.
5. Axial Growth Compensation: Fixed End or Drifting End?
Lengthy shafts increase and agreement with temperature changes throughout operation. That implies you need to establish your bearing setup with one set end and one floating end.
NU and N collection round roller bearings have no flanges on the internal ring (or on one side). This lets the shaft action freely in the axial instructions about the housing– making them perfect as floating-end bearings. NJ and NUP collection can give axial positioning in one or both instructions, so they work well as fixed-end bearings. This setup is extremely usual in transmissions and electric motors.
Component 3: BMB Product at a Glimpse

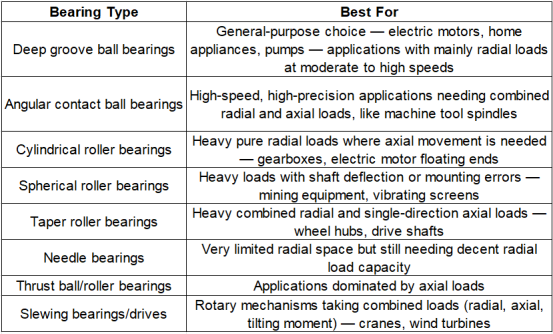

BMB uses a full variety of industrial bearings, covering all the major kinds we’ve reviewed. This fast reference table attaches the selection principles over directly to details item groups:
Part 4: Diving Deeper– Accuracy, Clearance, Lubrication, and Seals
( Axial)
1. Precision Grades
Requirement accuracy (P0) helps the vast bulk of general equipment. For precision devices like equipment device pins or aerospace components, you’ll require P5 or greater. Tighter accuracy implies tighter dimensional resistances and better running precision– but also higher costs.
2. Interior Clearance and Preload
Bearings need to keep appropriate interior clearance after setup. Too much clearance leads to resonance and sound. Insufficient, and thermal growth can trigger the bearing to confiscate. In special cases like equipment device pins, preload (applying unfavorable clearance) is made use of to enhance system rigidity and rotational precision.
3. Lubricating substance Selection
Lubrication is a make-or-break variable for bearing life. Grease works for the majority of moderate-speed and temperature level applications– it’s simple to seal and can run maintenance-free for extended periods. Oil (oil bath, oil mist, jet lubrication) is better for high-speed or high-temperature conditions, as it dissipates warmth better. When picking a lubricating substance, check the speed factor (ndm worth). Don’t simply choose based on maximum rate– the oil you select may not create an appropriate film at reduced speeds.
4. Sealing Program
Pick the seal kind based upon your setting: get in touch with seals keep dirt out well yet add some friction; non-contact seals work for broadband yet supply much less security versus contamination; open bearings rely upon exterior securing systems.
Component Five: Life Computation– From Concept to Technique
( or Combined Basic Filter Table)
At the end of the day, you need to verify whether your selected bearing will in fact satisfy the predicted service life. This is where basic score life estimation comes in.
The standard score life L10 formula (ISO 281 requirement):
For sphere bearings: L10 = (C/P) ³ × (10 SIX/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 ⁶/ 60n) hours
Where:
C: basic dynamic load rating (kN)– discovered in the item brochure
P: equivalent dynamic load (kN)– takes both radial and axial loads right into account
The comparable dynamic load P is calculated as: P = X · Fr + Y · Fa
Fr is the radial tons, Fa is the axial tons
X and Y are coefficients that depend upon birthing kind and the Fa/Fr ratio– examine the brochure for these values
For even more demanding conditions, you can apply adjustment aspects: Ln = a1 × a2 × a3 × L10
a1 is the dependability factor (a1 = 1 for 90% reliability, concerning 0.21 for 99%)
a2 is the product aspect (top notch bearing steel can get to 1.5 to 2)
a3 is the operating conditions aspect (good lubrication and cleanliness can give 2 to 3)
With this estimation, designers can validate that the chosen bearing meets the needed life span. It additionally aids compare multiple choices and make data-driven choices.
This guide has actually walked you through the complete choice path– from evaluating working conditions, to matching the right bearing type, to verifying life span. Comprehending and applying this methodology will certainly assist you make precise, efficient, and cost-efficient bearing decisions throughout a variety of commercial applications.
